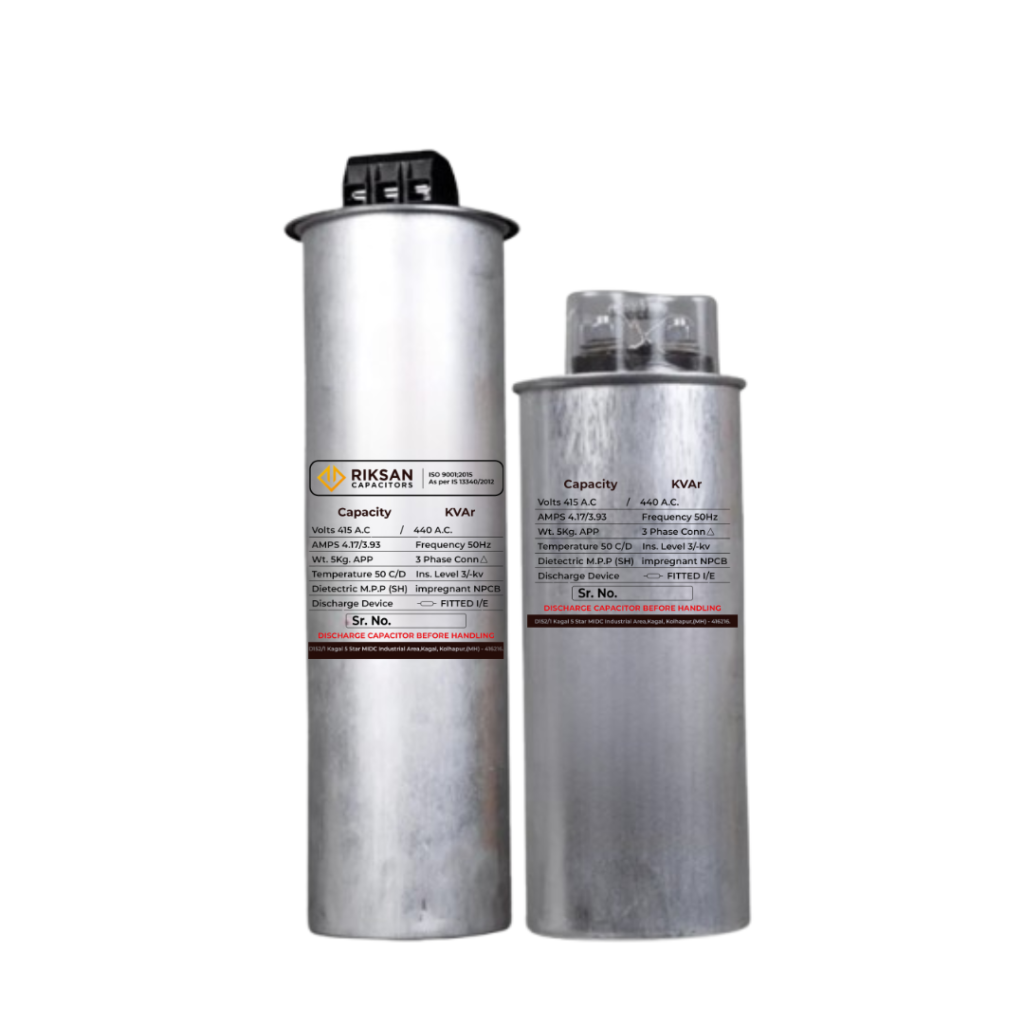

Power Factor Correction Capacitors (PFC) Capacitors

Product Discription

Riksan Capacitors is proud to offer a comprehensive range of Power Factor Correction (PFC) capacitors designed to enhance energy efficiency and improve power factor in electrical systems. Our PFC capacitors are engineered with precision to provide reliable performance, durability, and optimal power factor correction.

Key features and benefits of Riksan Capacitors' PFC capacitors include

High-Quality Construction

Our PFC capacitors are manufactured using high-grade materials and advanced manufacturing techniques, ensuring superior quality and long-term reliability.

Wide Range of Capacitance Ratings

We offer PFC capacitors in various capacitance ratings, allowing you to select the most suitable option based on your specific power factor correction requirements.

Excellent Voltage Ratings

Our PFC capacitors are designed to operate effectively at specific voltage levels commonly found in electrical systems, ensuring safe and efficient operation.

Self-Healing Properties

Riksan Capacitors' PFC capacitors possess self-healing capabilities, enabling them to withstand voltage fluctuations and automatically repair minor dielectric breakdowns. This feature enhances the lifespan and reliability of the capacitors.

Robust Safety Features

We prioritize safety, and our PFC capacitors incorporate essential safety features such as overcurrent protection, discharge resistors, and thermal protection mechanisms to ensure safe and reliable operation.

Compliance with Standards

Our PFC capacitors are designed and manufactured in adherence to industry standards and regulations, guaranteeing their performance and reliability.

Customized Solutions

Riksan Capacitors understands that every electrical system is unique. We offer tailored PFC capacitor solutions to meet the specific requirements of your system, ensuring optimal power factor correction.

Features

MS Body construction for LV application
Non-PCB jelly oil & Dry type encapsulation
3-Phase Delta connection
MPP film technology with Self-Healing Properties
Over-pressure Disconnector
Over current withstand capability – 1.8 times of rated current
Available in Standard & Heavy duty 1-25KVAR Single Unit in 525VAC
Compact size and light weight
Capable of floor mounting & wall mounting

Applications

Heavy Industrial applications
Domestic Applications
Commercial Applications

Mechanical Specifications

Capacitance kVAR	Tolerance +/ – %	Rated voltage	Frequency HZ	Operating temperture	Dimension DxH
1	±5%	525	50-60	50°C	125x45x130
2	±5%	525	50-60	50°C	125x45x130
3	±5%	525	50-60	50°C	125x45x130
4	±5%	525	50-60	50°C	165x55x140
5	±5%	525	50-60	50°C	165x55x140
6	±5%	525	50-60	50°C	165x55x85
7.5	±5%	525	50-60	50°C	165x55x85
8	±5%	525	50-60	50°C	185x65x175
10	±5%	525	50-60	50°C	185x65x175
12.5	±5%	525	50-60	50°C	235x110x175
15	±5%	525	50-60	50°C	235x110x175
20	±5%	525	50-60	50°C	235x110x225
25	±5%	525	50-60	50°C	235x110x225

Detailed Specification

Range:	1KVAR TO 25KVAR in Single Unit availability in a compact modular type
Capacitors Tolerance:	±5%
Operating Temperature Range:	50°C
Rated Frequency:	50-60HZ
Construction:	Dry Type

Dielectric:	Polypropylene Film
Terminal:	Ceramic Insulated
Approvals & Standards:	ISI CML No:6200187411, TUV – CE Certified
Safety/Operating Class:	–
